KVIT Optima P 300
Industrial 300 kW pellet burner. Cascade grate block with self-cleaning, Double Air dynamic distribution, chamber lining.
Key Features
- ✓Cascade grate with self-cleaning
- ✓Dynamic air distribution
- ✓Heat-resistant steel AISI 310s
- ✓Power: 90-300 kW

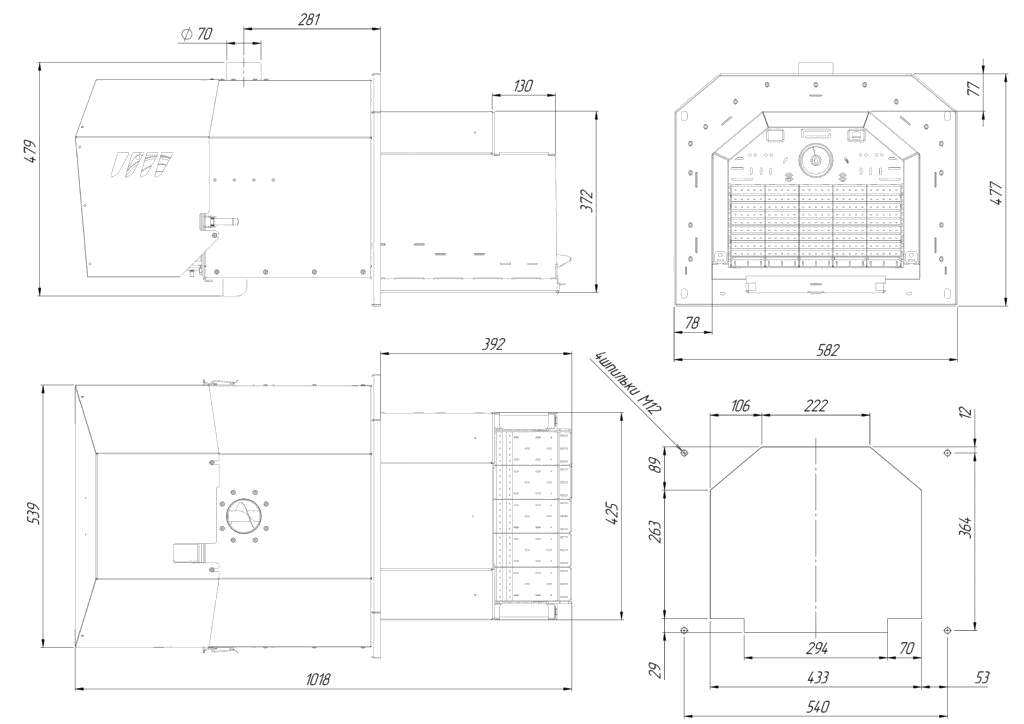

Drawing
| Power | 90-300 kW |
| Power draw | 185-449 W |
| Dimensions (L×H×W) | 912×457×488 mm |
| Combustion chamber (D×H×W) | 457×361×427 mm |
| Weight | 103 kg |
| Power supply | 230V, 50Hz |
| Features | PLUM ecoTOUCH 850 standard |
|---|---|
| Automatic ignition | ✓ |
| PID control | ✓ |
| Weather-dependent control | ✓ |
| Wi-Fi / Internet module | ecoNET 300 |
| Touch screen | ✓ |
| Auto grate cleaning | ✓ |
Detailed Description
KVIT Optima P 300 is the most powerful industrial pellet burner in the Optima P range, 90-300 kW, for heating large industrial and commercial facilities. A self-cleaning cascade grate block and Double Air dynamic air distribution ensure complete fuel combustion and high efficiency with minimal maintenance. The combustion chamber is lined and made of AISI 310s heat-resistant steel, designed for long-term operation under maximum load. The burner comes with a PLUM ecoTOUCH 850 touchscreen controller and runs on wood pellets and agro-pellets.
Burner Application
Suitable for large industrial and commercial facilities up to 3000 m² — production shops, warehouses, greenhouse complexes, service stations, retail and logistics centers that need maximum autonomous heating with minimal staff intervention. Designed for continuous operation under constant load throughout the entire heating season.
Delivery Set
- ✓KVIT Optima P 300 burner, assembled
- ✓PLUM ecoTOUCH 850 controller
- ✓Ceramic ignition element
- ✓Pellet feed auger
- ✓Mounting kit for installation on the boiler
- ✓Installation and operation manual
Key Advantages of the Model
- ✓Self-cleaning cascade grate block
- ✓Double Air dynamic air distribution for complete combustion
- ✓Lined chamber of AISI 310s heat-resistant steel
- ✓PLUM ecoTOUCH 850 touchscreen controller included
- ✓Runs on wood pellets and agro-pellets
How Pellet Burners Work
A pellet burner operates on the principle of automatic fuel feeding: pellets are carried from the hopper by an auger conveyor into the combustion chamber, where a ceramic element ignites them without an open flame or manual lighting. A fan forces in air to ensure complete combustion and high efficiency, while ash falls through self-cleaning cascade grates, reducing the need for maintenance. An electronic controller regulates the fuel and air feed based on the set temperature, maintaining stable, economical operation in a fully automatic mode.
