KVIT Optima P 150
Industrial 150 kW pellet burner. Cascade grate block with self-cleaning, Double Air dynamic distribution, chamber lining.
Key Features
- ✓Cascade grate with self-cleaning
- ✓Dynamic air distribution
- ✓Heat-resistant steel AISI 310s
- ✓Power: 45-150 kW
Drawing
| Power | 45-150 kW |
| Power draw | 107-325 W |
| Dimensions (L×H×W) | 782×336×334 mm |
| Combustion chamber (D×H×W) | 390×262×288 mm |
| Weight | 49 kg |
| Power supply | 230V, 50Hz |
| Features | PLUM ecoTOUCH 850 standard |
|---|---|
| Automatic ignition | ✓ |
| PID control | ✓ |
| Weather-dependent control | ✓ |
| Wi-Fi / Internet module | ecoNET 300 |
| Touch screen | ✓ |
| Auto grate cleaning | ✓ |
Detailed Description
KVIT Optima P 150 is an industrial 45-150 kW pellet burner for heating large commercial and industrial facilities. A self-cleaning cascade grate block and Double Air dynamic air distribution ensure complete fuel combustion and high efficiency with minimal maintenance. The combustion chamber is lined and made of AISI 310s heat-resistant steel, designed for long-term operation under high load. The burner comes with a PLUM ecoTOUCH 850 touchscreen controller and runs on wood pellets and agro-pellets.
Burner Application
Suitable for large commercial and industrial facilities up to 1500 m² — production shops, warehouses, greenhouse farms, service stations, retail and logistics complexes that need powerful autonomous heating with minimal staff intervention. Designed for continuous operation throughout the entire heating season.
Delivery Set
- ✓KVIT Optima P 150 burner, assembled
- ✓PLUM ecoTOUCH 850 controller
- ✓Ceramic ignition element
- ✓Pellet feed auger
- ✓Mounting kit for installation on the boiler
- ✓Installation and operation manual
Key Advantages of the Model
- ✓Self-cleaning cascade grate block
- ✓Double Air dynamic air distribution for complete combustion
- ✓Lined chamber of AISI 310s heat-resistant steel
- ✓PLUM ecoTOUCH 850 touchscreen controller included
- ✓Runs on wood pellets and agro-pellets
How Pellet Burners Work
A pellet burner operates on the principle of automatic fuel feeding: pellets are carried from the hopper by an auger conveyor into the combustion chamber, where a ceramic element ignites them without an open flame or manual lighting. A fan forces in air to ensure complete combustion and high efficiency, while ash falls through self-cleaning cascade grates, reducing the need for maintenance. An electronic controller regulates the fuel and air feed based on the set temperature, maintaining stable, economical operation in a fully automatic mode.
Product Overview
KVIT Optima Prom pellet burners
Realized Projects

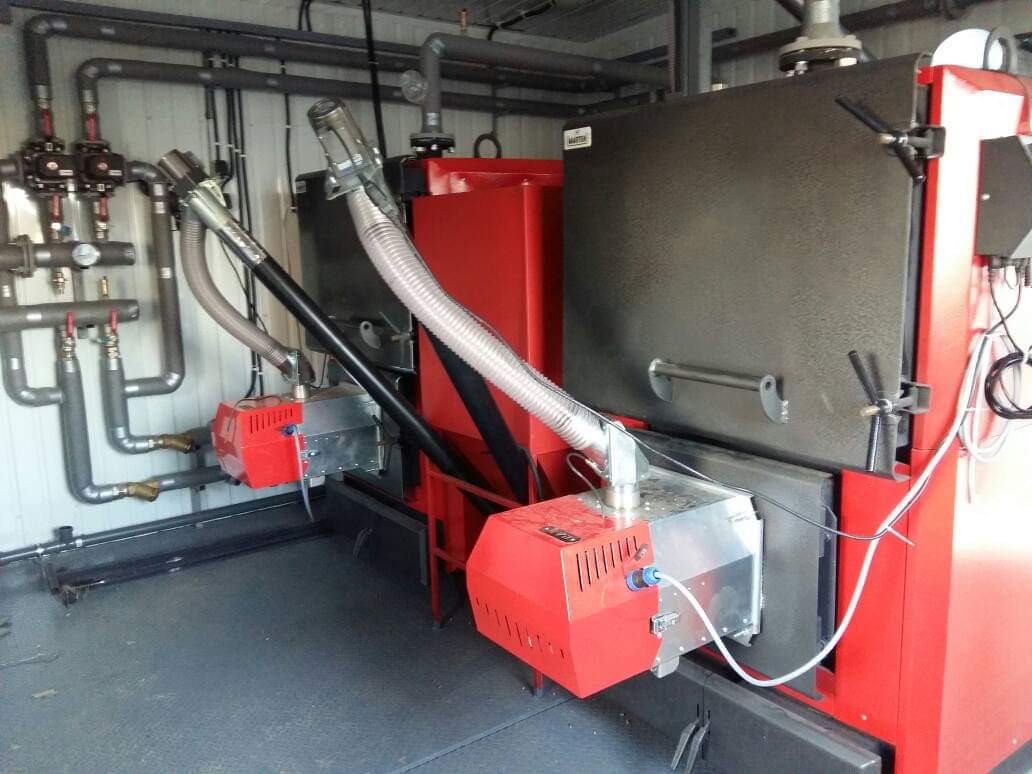

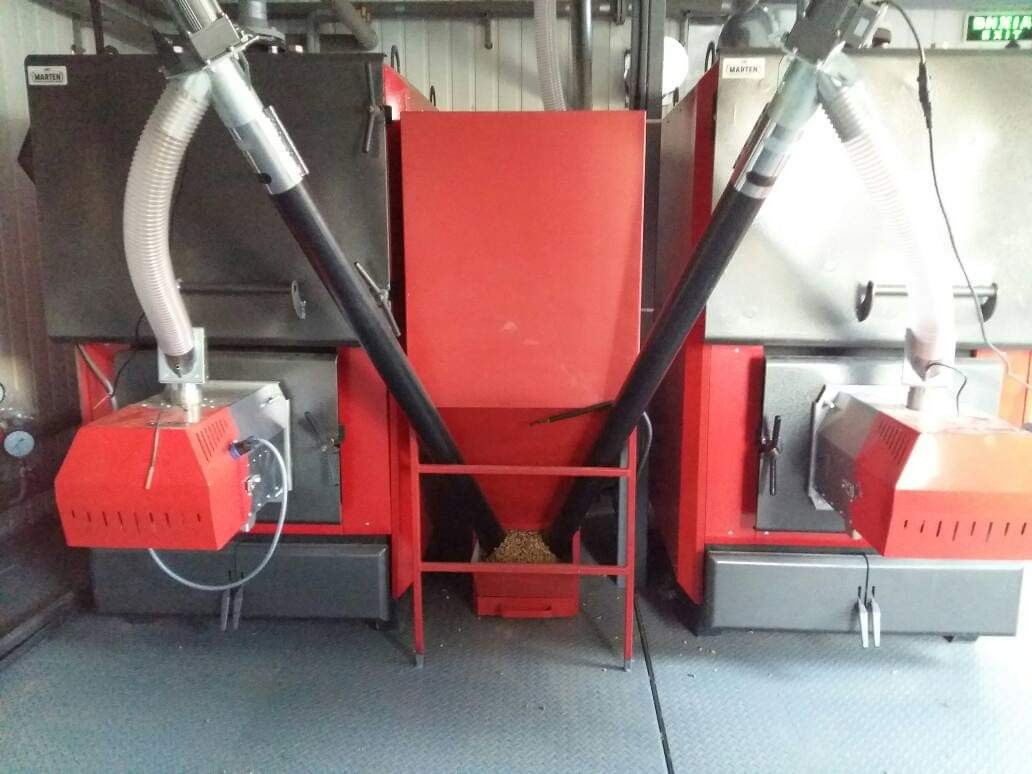

Construction of 300 kW Boiler Room
Stationary pellet boiler room with two ALTEP solid fuel boilers with KVIT Optima Prom 150 kW burners each. ST-10 fuel tank, PLUM ecoMAX 850 automation and ecoNET 300 internet module for remote control.
View Details
Supermarket Heating Modernization 150 kW
Modernization of a 2000+ m² supermarket heating system. Two KVIT Optima Prom 150 kW burners installed on existing solid fuel boilers with PLUM ecoMAX 850 automation and touch control.
View Details
Printing House Heating 2000+ m²
Installation of a boiler room for heating a printing house over 2000 m² with KVIT Optima 150 kW burner. Automatic maintenance of stable temperature for the printing process.
View Details
